Filter-press with automatic discharge plate-plate

MATCHLESS

Filtration of medium-long term

The MATCHLESS filter press provides completely automatic operation and is especially suited to medium and lengthy filtration cycles with high quantities of solids requiring separation.

It may be used as a process machine or in purification plant; derived from our "QUICKDRY" model HD version filter press, the MATCHLESS is available in models ranging from 4959/35 to 1500/140.

In the filter MATCHLESS the unloading of the cakes is done one by one and this leads to a duration of the discharge of some tens of minutes.

It can be supplied equipped with polypropylene filtering elements with filtrate discharging through a stainless steel open channel and a system of internal headers, or alternatively it can be equipped with membrane plates offering improved dewatering performance.

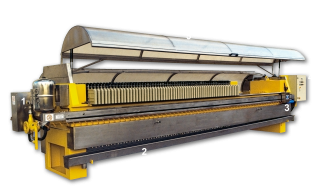

FEATURES


1 - Exclusive oil servo control filtration system

2 - Filtrate collection channel in stainless steel

3 - Moving and shaking plates device

4 - Electrical panel with integrated control of the pump and of the other functions complete with PLC

5 - Safety guards and new design mud guards

Filter Press Matchless

FULLY AUTOMATIC FILTRATIONS


In any case it is a machine with a completely automatic operation controlled by a PLC which allows to work with consecutive filtrations and with an original Programmable Shaking device of each filter plate which greatly facilitates the detachment of the filter cloths’ cakes.

Every machine is supplied with complete protection of the working components and the automatic handling and moving of the filter elements, all being accessible only through electrically interlocked sliding doors.

An automatic pressure relief valve is installed to avoid the risk of splashing at the end of each filtration, when the feed pump is of the volumetric type.

STANDARD


Siemens PLC installed as standard on each filter press

Siemens PLC installed as standard on each filter press

OPTIONAL

OPTIONALS


Mud pumps

Special filtering cloths

Special filtering elements

Filter cant structure

Conveyer belt or redler

Collection tank for the drippings

High pressure cloth cleaning device

TECHNICAL FEATURES

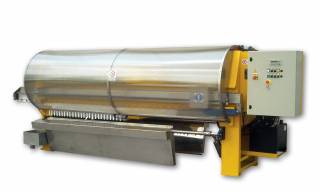

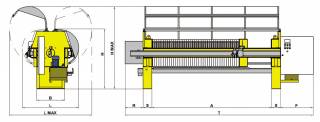

MATCHLESS 600

Filter Press Matchless
Model MATCHLESS 600
Power KW 3
Panel thikness 30 mm
B 640 mm
L 1450 mm
L max 2100 mm
R 300 mm
S 210 mm
F 900 mm
H 1650 mm
H max 2300 mm
Plates Volume Filter surface Weight Model HD
N Lt m2 Kg A mm T mm
60 476 37,5 1900-2680 4280 5900

All the measures are indicative and not binding. Galigani Filtri reserves the right to modify at any time without notice.

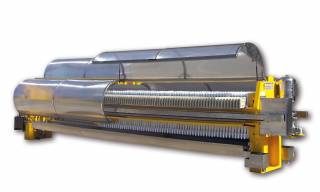

MATCHLESS 800

Filter Press Matchless
Model MATCHLESS 800
Power KW 3
Panel thikness 30 mm
B 820 mm
L 1700 mm
L max 2300 mm
R 300 mm
S 260 mm
F 900 mm
H 1800 mm
H max 2450 mm
Plates Volume Filter surface Weight Model HD
N Lt m2 Kg A mm T mm
40 587 44 3800-5000 3480 5200
60 880 66 4400-6200 4680 6400

Special measures on request to be examined by our technical department

All the measures are indicative and not binding. Galigani Filtri reserves the right to modify at any time without notice.

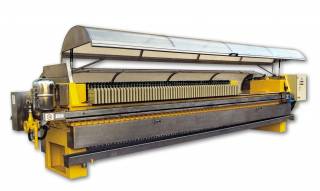

MATCHLESS 1000

Filter Press Matchless
Model MATCHLESS 1000
Power KW 3
Panel thikness 30 mm
B 1020 mm
L 2060 mm
L max 3600 mm
R 370 mm
S 305 mm
F 900 mm
H 2050 mm
H max 2700 mm
Plates Volume Filter surface Weight Model HD
N Lt m2 Kg A mm T mm
60 1405 102 7100-10000 4970 6850
80 1874 136 8000-11900 6220 8100
100 2343 170 8900-13800 7470 9350

Special measures on request to be examined by our technical department

All the measures are indicative and not binding. Galigani Filtri reserves the right to modify at any time without notice.

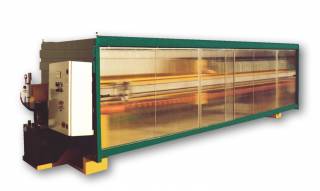

MATCHLESS 1200

Filter Press Matchless
Model MATCHLESS 1200
Power KW 3
Panel thikness 30 mm
B 1220 mm
L 2300 mm
R 500 mm
S 350 mm
F 900 mm
H 2100 mm
Plates Volume Filter surface Weight Model HD
N Lt m2 Kg A mm T mm
80 2646 196 15000-20500 7260 9800
100 3307 245 17000-23500 8700 11200
120 3968 294 19000-27000 10140 12700

Special measures on request to be examined by our technical department

All the measures are indicative and not binding. Galigani Filtri reserves the right to modify at any time without notice.

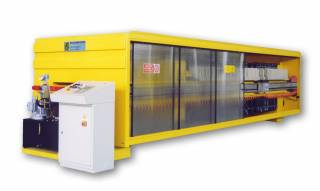

MATCHLESS 1500

Filter Press Matchless
Model MATCHLESS 1500
Power KW 3
Panel thikness 30 mm
B 1520 mm
L 2500 mm
R 500 mm
S 350 mm
F 900 mm
H 2100 mm
Plates Volume Filter surface Weight Model HD
N Lt m2 Kg A mm T mm
80 4108 293,6 19000-27500 7770 10300
100 5135 367 22000-32500 9310 11850
120 6162 440,4 25000-38000 10850 13700

Special measures on request to be examined by our technical department

All the measures are indicative and not binding. Galigani Filtri reserves the right to modify at any time without notice.
