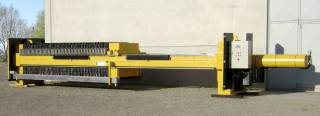

The SIMULTANEOUS filter press provides completely automatic operation and it is especially suited to low-medium filtration cycles with high quantities of solids requiring separation.
It can be a process machine or a purification plant machine; derived from our Matchless model, the SIMULTANEOUS filter is offered in models ranging from 4959/8 and 1500/50.
The unloading of the cakes takes place in a reduced time with the simultaneous opening of all the plates together. For this reason, the machine has a cylinder having a long stroke.

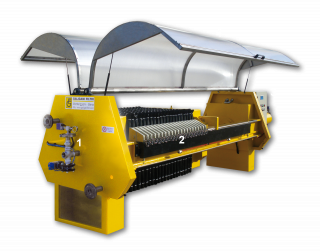

1 - Exclusive oil servo control filtration system

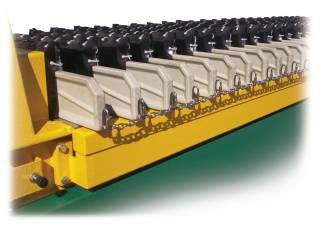

2 - Moving and shaking plates device
3 - Electrical panel with integrated control of the pump and the other complete with PLC functions

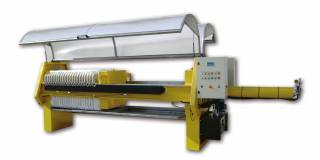

4 - Safety guards and new design mud guards
The SIMULTANEOUS model is in fact the most economic solution for fully automatic machines.
The SIMULTANEOUS filter can be supplied with polypropylene filtering elements, with the filtrate discharging both in open channel as well as in a system of internal headers, alternatively it can be equipped with membrane plates offering improved dewatering performance.
In any case, it is a completely automatic machine controlled by a PLC which provides for successive filtration, or with the provision of a special programmable shaking device for each filter element, which eases considerably the detachment of cakes from the cloths.

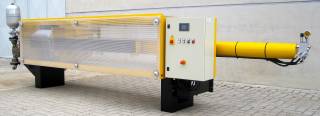

All machines have a fully protected filtering part and accessible by rotating or interlocked sliding doors; as well as the handling system of the filtering elements and other moving parts.

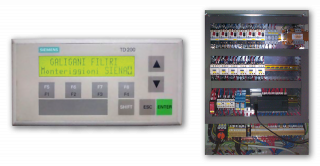

Siemens PLC installed as standard on each filter press
Mud pumps
Special filtering cloths
Special filtering elements

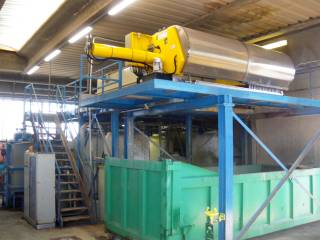

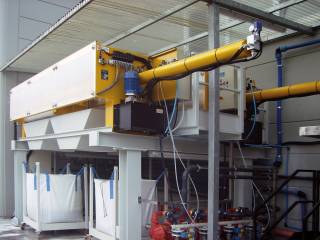

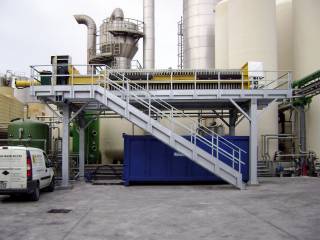

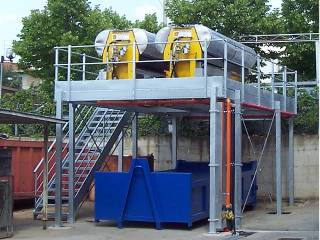

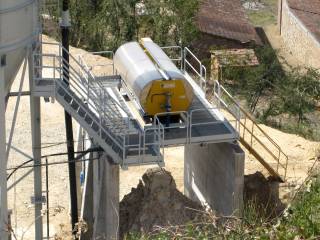

Filter cant structure
Conveyer belt or redler
Collection tank for the drippings
High pressure cloth cleaning device

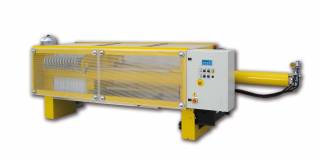

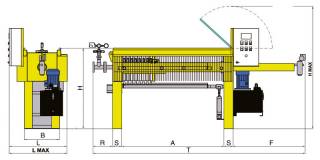

| Model | SIMULTANEOUS 490x590 |
| Panel thikness | 30 mm |
| B | 540 mm |
| L | 1060 mm |
| L max | 1200 mm |
| R | 300 mm |
| S | 180 mm |
| H | 1210 mm |
| H max | 2200 mm |
| Plates | Cake thikness | Volume | Filter surface | Weight | A | F | T |
|---|---|---|---|---|---|---|---|
| N | mm | Lt | m2 | Kg | mm | mm | mm |
| 10 | 30 | 69 | 4,8 | 400-550 | 2650 | 2050 | 5300 |
| 20 | 30 | 136 | 9,6 | 800-1100 | 2650 | 1550 | 4800 |
Special measures on request to be examined by our technical department
All the measures are indicative and not binding. Galigani Filtri reserves the right to modify at any time without notice.

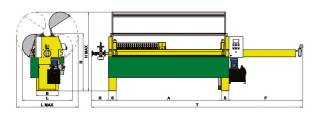

| Model | SIMULTANEOUS 600 |
| Panel thikness | 30 mm |
| B | 640 mm |
| L | 1450 mm |
| L max | 2100 mm |
| R | 300 mm |
| S | 210 mm |
| H | 1650 mm |
| H max | 2300 mm |
| Plates | Cake thikness | Volume | Filter surface | Weight | A | F | T |
|---|---|---|---|---|---|---|---|
| N | mm | Lt | m2 | Kg | mm | mm | mm |
| 20 | 30 | 157 | 12,4 | 1800-2100 | 3080 | 1900 | 5700 |
| 30 | 30 | 237 | 18,6 | 4100-4600 | 4280 | 2700 | 7700 |
Special measures on request to be examined by our technical department
All the measures are indicative and not binding. Galigani Filtri reserves the right to modify at any time without notice.
| Model | SIMULTANEOUS 800 |
| Panel thikness | 30 mm |
| B | 820 mm |
| L | 1750 mm |
| L max | 2100 mm |
| R | 300 mm |
| S | 260 mm |
| H | 1800 mm |
| H max | 2450 mm |
| Plates | Cake thikness | Volume | Filter surface | Weight | A | F | T |
|---|---|---|---|---|---|---|---|
| N | mm | Lt | m2 | Kg | mm | mm | mm |
| 23 | 30 | 337 | 25,3 | 3200-3900 | 3480 | 1900 | 6200 |
| 32 | 30 | 467 | 35,2 | 3800-4700 | 4680 | 2500 | 8000 |
Special measures on request to be examined by our technical department
All the measures are indicative and not binding. Galigani Filtri reserves the right to modify at any time without notice.
| Model | SIMULTANEOUS 1000 |
| Panel thikness | 30 mm |
| B | 1020 mm |
| L | 2100 mm |
| L max | 3600 mm |
| R | 300 mm |
| S | 305 mm |
| H | 2100 mm |
| H max | 2700 mm |
| Plates | Cake thikness | Volume | Filter surface | Weight | A | F | T |
|---|---|---|---|---|---|---|---|
| N | mm | Lt | m2 | Kg | mm | mm | mm |
| 30 | 30 | 702 | 51,2 | 6400-7800 | 4540 | 2300 | 7750 |
| 40 | 30 | 936 | 68,3 | 8500-10400 | 5790 | 2900 | 9600 |
Special measures on request to be examined by our technical department
All the measures are indicative and not binding. Galigani Filtri reserves the right to modify at any time without notice.

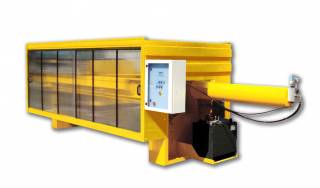

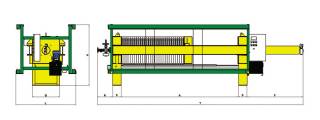

| Model | SIMULTANEOUS 1200 |
| Panel thikness | 30 mm |
| B | 1220 mm |
| L | 2300 mm |
| R | 500 mm |
| S | 350 mm |
| H | 2100 mm |
| Plates | Cake thikness | Volume | Filter surface | Weight | A | F | T |
|---|---|---|---|---|---|---|---|
| N | mm | Lt | m2 | Kg | mm | mm | mm |
| 30 | 30 | 934 | 73,5 | 12000-13800 | 5170 | 2600 | 9000 |
| 40 | 30 | 1245 | 98 | 13500-16000 | 6620 | 3200 | 11300 |
Special measures on request to be examined by our technical department
All the measures are indicative and not binding. Galigani Filtri reserves the right to modify at any time without notice.

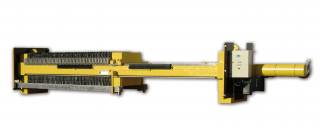

| Model | SIMULTANEOUS 1500 |
| Panel thikness | 30 mm |
| B | 1520 mm |
| L | 2500 mm |
| R | 500 mm |
| S | 350 mm |
| H | 2100 mm |
| Plates | Cake thikness | Volume | Filter surface | Weight | A | F | T |
|---|---|---|---|---|---|---|---|
| N | mm | Lt | m2 | Kg | mm | mm | mm |
| 30 | 30 | 1575 | 111,6 | 15000-18000 | 5310 | 2600 | 9400 |
| 40 | 30 | 2100 | 148,8 | 17000-21000 | 6760 | 3100 | 11300 |
| 50 | 30 | 2625 | 186 | 19000-24000 | 8210 | 3700 | 13400 |
Special measures on request to be examined by our technical department
All the measures are indicative and not binding. Galigani Filtri reserves the right to modify at any time without notice.
